PANASONIC プロジェクター TH-D5600L ☆5000ルーメン HDMI対応可能


セットしたレンズ

セットしたレンズ

セットしたレンズ

  • Product Quantity
    : 1
  • Starting Bid
    :60,000円
  • Highest Bidder
    : / Rating:
  • Listing Date
    :2025年07月17日 21時43分
  • Bidding closes on
    :2025年07月18日 21時43分
  • Auction Number
    :j374027820
  • Condition
    :Damaged and stained (specify in description)
  • Automatic Extension
    :Yes
  • Authentication
    :No
  • Early Closing
    :Yes
  • Can I return the product?
    :no
  • Description
  • Q&A ()
  • Cost Estimator
  • Problem Item Response Procedur
Notes
  1. Plug-in electrical appliances are only shipped by air (shipping by sea requires commodity inspection)
  2. Freight charges cash on delivery
  3. The remittance needs to be completed within the time required by the seller

PANASONIC TH-D5600L 高輝度  5000ルーメン 業務用 ロングタイプランプ HDMI対応可能 動作確認済





PANASONICの液晶プロジェクター TH-D5600Lの出品です。映像を出力して動作確認を行ないました。きれいに映りました。問題がありません。

 ランプはロングタイプ(ET-LAD55L)となります。新品で最大8,000時間使用可能と言われています。またまた 使用可能だと思います。


商品詳細
メーカー
 Panasonic(パナソニック)
型番
 TH-D5600L
レンズ
 画像に掲示したもの(STANDARD LENS)

状態 細かいな傷や汚れがあります。全体的にはきれいだと思います。個人の判断です。

DVIはHDCP対応ですので、別途HDMI-DVI変換コネクタをご用意いただければ、HDMI接続が可能(音声は無理ですが、高画質での投影が可能)です。 HDMI(出力)変換DVI(入力) すべてのHDMI信号を保証するものではありませんが、TVチューナーにて確認済みです。 (高画質での投影が可能)
付属品/ランプ使用時間 付属品は本体、ACケーブル、VGAケーブルとなります。

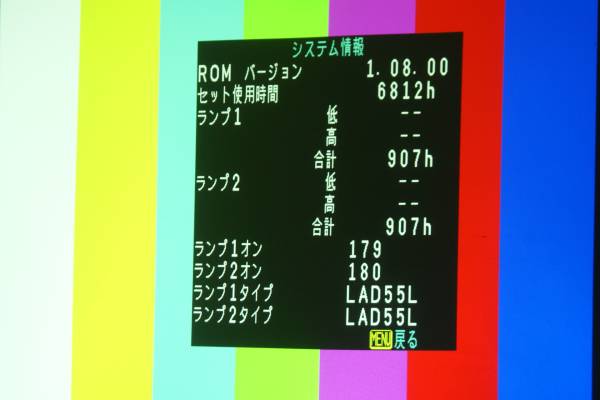

(メニューから確認)ランプの使用時間下記なっています。3枚目写真を参照してください。

ランプ時間  ランプ1:907H  ランプ1 計:907H  ランプ1 ON:179回  ランプ2 :907H  ランプ2 計 907H  ランプ2 ON:180回
ランプは消耗品ですので、保障外となります。確認のため、ランプの使用時間は1、2時間をアップ可能性があると思います。ご注意ください。
注意事項 中古美品ですので、細かいな傷、汚れなどがあります。ノークレームノーリターン、ノー返品でお願いします。

落札後のキャンセルは一切お断りさせて頂きますので
あらかじめご了承下さい。オークション終了後、
48時間以内に最初の連絡が取れる方の
ご入札をお待ちしております。
発送詳細 ゆうパックかクロネコヤマト便の送料着払いにて発送となります。
支払方法
ヤフー簡単決済

●仕様
光出力 5,000lm [ランプモードハイ時]
周辺光量比 90 %
解像度 RGB信号時: 1024 ドット×768 ドット (1 600 ドット×1 200 ドット圧縮表示)
ビデオ信号入力時: 水平 560 TV本
光源ランプ 300W UHMランプ×2灯
コントラスト比 2000:1(全白/全黒)[コントラストモードハイ時:光出力は2,500 lm(ANSI)になります]
1000:1(全白/全黒)[コントラストモードノーマル時]
DLP(R)チップ 素子サイズ:0.7 型(アスペクト比4:3)
表示方式:
画素数:786,432 画素(1,024 ドット×768 ドット)
対応走査周波数 RGB信号入力時:
(水平)15kHz~91kHz (垂直)50Hz~85Hz
(ドットクロック)108MHz以下

Y・PB(CB)・PR(CR)信号:
(水平)15.75kHz (垂直)60Hz〔480i〕、
(水平)15.63kHz (垂直)50Hz〔576i〕、
(水平)31.5kHz (垂直)60Hz〔480p〕、
(水平)31.25kHz (垂直)50Hz〔576p〕、
(水平)37.5kHz (垂直)50Hz〔720/50p〕、
(水平)45kHz (垂直)60Hz〔720/60p〕、
(水平)33.75kHz (垂直)60Hz〔1035/60i〕、
(水平)33.75kHz (垂直)60Hz〔1080/60i〕、
(水平)28.13kHz(垂直)50Hz〔1080/50i〕、

ビデオ/Sビデオ信号入力時:
(水平)15.75kHz/15.63kHz
(垂直)50Hz/60Hz〔NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM〕
光軸シフト量 <上下>0:10~10:10(電動)、<左右>6:4~4:6(電動)
台形歪補正角度 垂直:最大±30°
投写画面サイズ 50 型~600 型(アスペクト比4:3)
投写方式 フロント天つり/フロント床置き/リア天つり/リア床置き
接続端子 DVI-D入力端子(DVI-D 24P)  1系統
HDCP対応?※シングルリンクのみ対応
EDID 1:[480p]、[576p]、[720/60p]、[1080/60i]、[1080/50i]
EDID 2:表示可能解像度 VGAサイズ(640ドット×480ドット)~S-XGAサイズ
(1,280ドット×1,024ドット)
ドットクロック周波数 25 MHz~108 MHz ※ノンインターレース信号のみ対応

RGB1入力端子(BNC×5) 1系統
RGB/Y・PB・PR信号
RGB2入力端子(高密度D-Sub 15P・メス型) 1系統
RGB/Y・PB・PR信号
ビデオ入力端子(BNC) 1系統
Sビデオ入力端子(Mini DIN 4P) 1系統
シリアル入出力端子(D-Sub 9P・メス型) 各1系統
外部制御用(RS-232C準拠)
リモート1入出力端子(M3ジャック) 各1系統
リモート2入力端子(D-Sub 9P・メス型) 1系統
外部制御用(接点制御)
LAN 端子(RJ-45)  1系統
ネットワーク接続用 PJLinkTM対応 10Base-T/100 Base-TX
キャビネット 樹脂成型品
環境条件 使用周囲温度:0℃~40℃
使用周囲湿度:20%~80% (非結露)
使用電源 AC100V 50Hz/60Hz
消費電力 770W [770VA](スタンバイ時10W 但し、ファン停止時)
外形寸法 [幅]530 mm × [高]167 mm(脚最小時)× [奥行]441 mm
質量 14.5 kg(投写レンズを含まず)
